Smart Grid Optimizer

Result type
software
Description

SW user interface enabling calling of individual functions over network model. The SW integrates both „Preparation of the electricity network operation“ contains optimization functions of unit commitment and network reconfiguration, support functions of short-circuit analysis and load flow, and it also implements „Control of the electricity network operation“ contains optimal active and reactive power flow and the sensitivity analysis of active and reactive power flow respectively.

Internal identifier: SGO1.0

Parameters:
64-bit application executable under the operation system Windows 7 and higher. Optimization performed by SW can save about 20% resp. 10% of production costs and power transmission losses respectively.

License conditions:
Non-exclusive licence is provided in terms of a licence agreement.

Figure

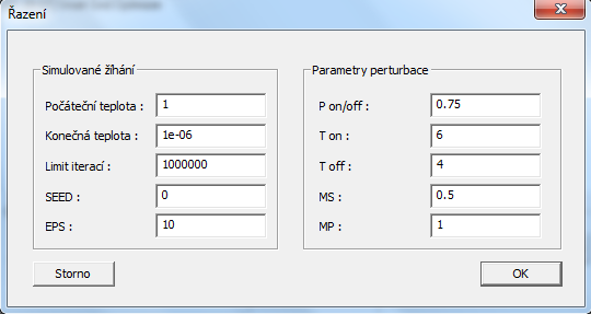

Fig. 1 – Unit Commitment Dialog Box

Figure

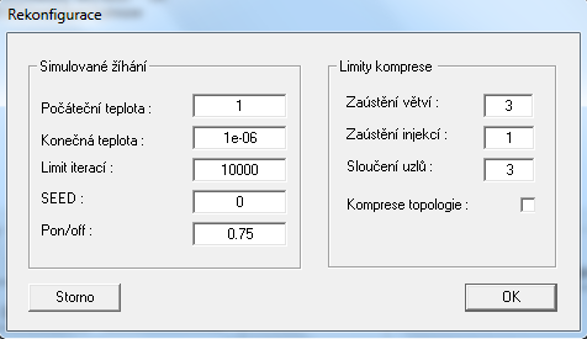

Fig. 2 – Optimal Reconfiguration Dialog Box

Figure

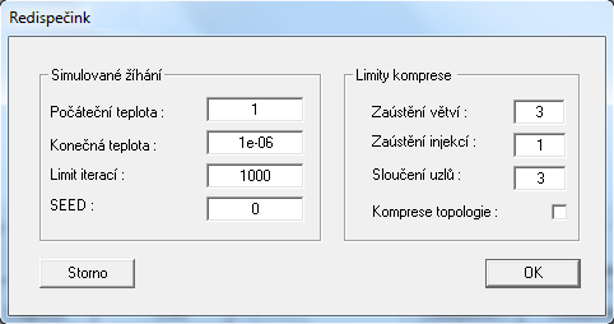

Fig. 3 – Redispatch Active and Reactive Power Dialog Box

Figure

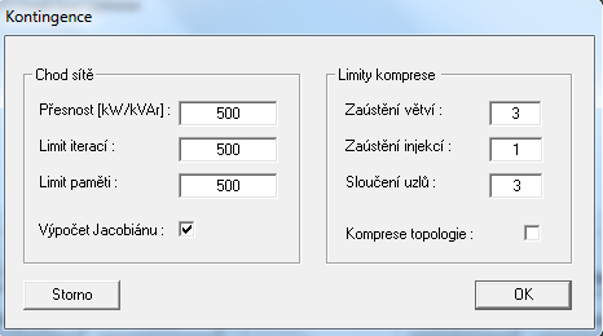

Fig. 4 – Contingence Analysis Dialog Box

Figure

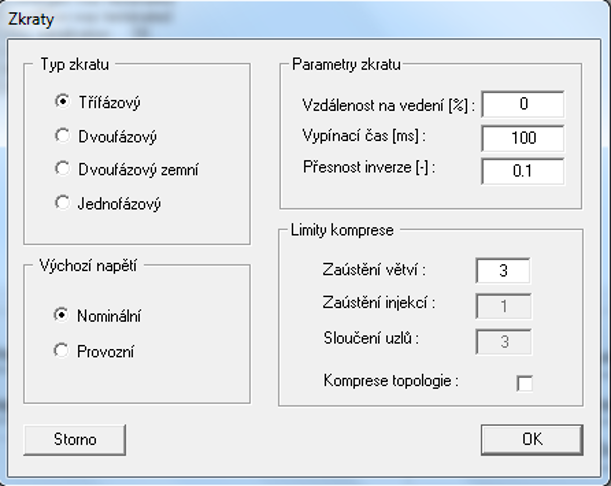

Fig. 5 – Short-circuit Analysis Dialog Box

Figure

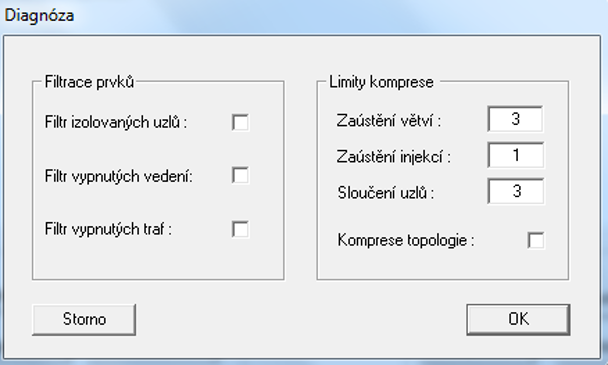

Fig. 6 – Network Model Diagnostics Dialog Box

Acknowledgement:
Authors gratefully acknowledge financial support from the Technology Agency of the Czech Republic under project No. TH02020104.

TAČR



Keywords
Unit Commitment; Optimal Reconfiguration; Optimal Power Flow; Sensitivity analysis; Contingency Analysis; Short-circuit Analysis; Load Flow
